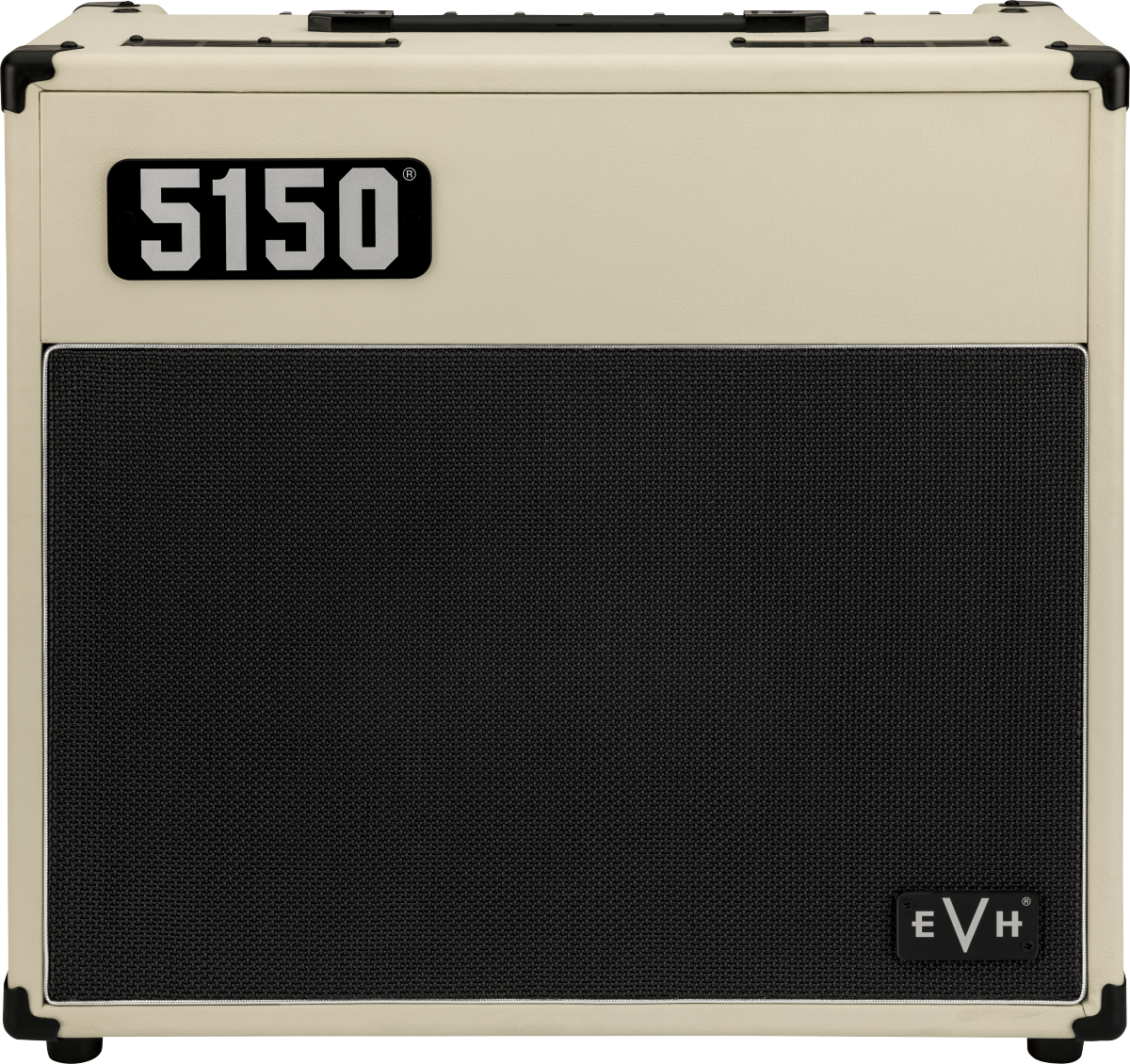

EVH 5150® Iconic Series Electric Guitar Amplifier | 15W 1×10 Combo Valve Amplifier | Ivory
Gigging and recording guitarists who want that strong EVH tube tone at a lower cost will find it in the EVH® 5150® Iconic® Series. The Iconic amplifiers, which are derived from the renowned and flagship EVH 5150III® amplifiers, produce the smouldering gain and scorching sound that Eddie Van Halen popularised.
The 5150® Iconic® Series 15-watt 1×10 combo was designed by the EVH team under the direction of renowned amp engineer James Brown. It features a 6L6 power tube that is voiced by a sophisticated, multi-stage hybrid preamp section that is supported by a pair of ECC83 tubes, giving it all the muscle you need for a practice amp in the modern era. To ensure that the pure cleans and blazing high gain tones are tight, clear, and articulate, the cabinet has a specially constructed EVH 10″ Celestion® speaker voiced especially for this preamp circuit, as well as unique interior plywood baffling for tight and improved bass response.
With two channels and additional voice on each for even greater versatility, this combo packs a punch. The Red channel’s burn button adds a fiery crunch that’s perfect for searing leads, while the Green channel has an overdrive button that allows you to choose between clean tones and higher gain.
Features
- 15-watt 1×10 combo
- Two channels: Green and Red; Green channel has overdrive button to go from clean to increased gain, while the Red channel has a burn button to go from lead to burn
- Dual Gain, Shared Low, Mid, High EQ, Dual Volume, Shared Global Reverb, Resonance and Presence controls
- 1/4 Power level switch, standby switch, power switch and ground lift located on rear panel
- Selectable impedance (4, 8 or 16 ohms)
- Two ECC83 preamp tubes and one 6L6 power tube
- One 10″ EVH® Celestion® Custom speaker
- 1/8″ audio in and 1/8″ emulated cab headphone/recording out
- Dual parallel speaker output jacks
- Effects loop
- One-button footswitch included
Specifications:
Control Panel
- Channel 1: Gain w/ Overdrive Switch; Channel 2: Gain w/ Burn Switch; Shared Low, Mid, High EQ; Channel 1/Channel 2 Volume; Global Reverb, Resonance and Presence
- Inputs One – 1/4″
- Aux Input 1/8 in (3.5 mm) Stereo
- Headphone Jack 1/8″ Stereo
- Line Out – One (1/8″ Stereo)
- Two Channels – Clean/Overdrive and Lead/Burn
- Effects – Reverb
- Effects Loop – 1/4″ (Send/Return)
- Connection Type – 1/4″
- Voltage – 230V EUR
- Wattage – 15 Watts
Hardware
- Control Knobs – Black Chicken-Head Style Pointer
- Amplifier Covering – Textured Vinyl
- Cabinet Material – MDF w/ Plywood Baffle
- Grille Cloth – Black
- Handle – Molded Plastic Strap with Black Powder Coated Caps
- Amplifier Jewel – Red Jewel
- Speaker Jack – Two – 1/4″ Parallel
- Front Panel – Brushed Aluminum
Speakers
- Speakers – One – 10″ EVH® Celestion® Custom
- Speaker Wattage – 15 Watts
- Total Impedance – 4, 8, or 16 ohms
Tubes
- Power Tubes – 1 X 6L6
- Preamp Tubes – 2 x ECC83S
- Rectifier – Solid State
Measurements
- Dimensions – 370x571x597 mm
- Shipping Weight – 19 kg
Accessories
Footswitch – 1-Button Footswitch Included
Reviews
There are no reviews yet.
